Easy and comfortable Full-HD video switcher
It is designed to small-sized studios such as educational and public organizations, etc.
Major Features
- Video switcher supporting input of 10 channels to maximum (using 4 live channels, 4 multimedia player, 2 multimedia player for PIP)
- Multi-color key optional Chroma-key Composition
- Character generation (offer 30 templates)
- Live multi-cam composition
- Video recorder
- Network streaming
Major Functions
- Chroma-key / Creoma-key
Use of 4-systemVideo Input and 8-system background
Multi-color key options - Character generator
Subtitles using five layers of more than 30-character background templates
Subtitles using five layers - Preview monitor and Media Player
- Composed output monitor and control
PGM monitor
Video Output control and audio monitoring - video switcher controller and transition
video switcher
Transition and live multi-cam composition - Video Recorder | Streaming
PIP setting | Router
Creoma-key
- Use of 4-systemVideo Input and 8-system background
Live input signals from CAM1 to 4 can be used as a source signal for Chroma-key Composition.
CAM1 ~ 4 and 4Media Player signals (files) can be used as background.
- Input video and background video synchronization
Media player signals that are suitable for the live signals can be automatically selected as background when synchronizing the live signals and media player signals and selecting the live signals.
- Multi-color key options
It allows high-quality Chroma-key composition in a setting that is unable to make background transparent because it is possible to choose many color keys used for Chroma-key composition.
- Shrink function and color value adjustment
It allows adjustment of transparency and thickness of edges in order to remove afterimages or reflected lights on the edges of the composite video.
It allows adjustment of color value and brightness of the composed source video in order to set the color value or brightness to a background image.

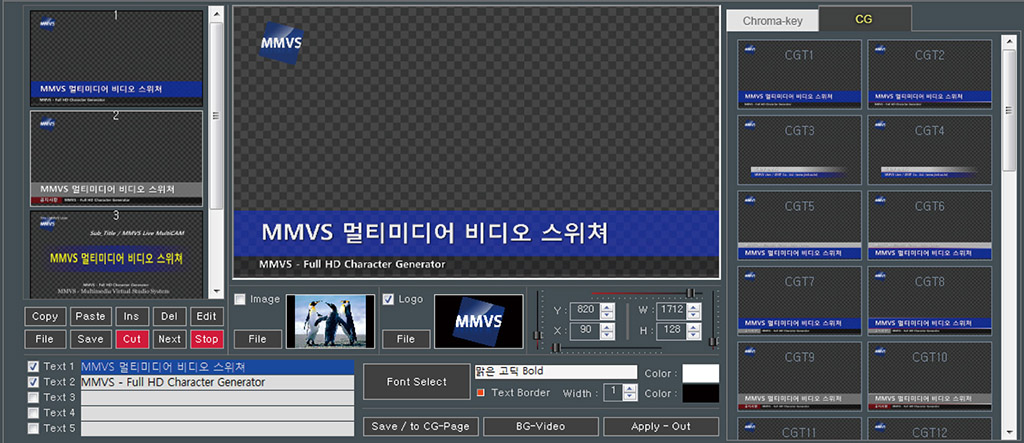

Character Generator
- Use of more than 30-character background templates
It can rapidly add and save subtitles because it provides more than 30 types of subtitle background templates used for subtitle production purpose.
It can create each of pages including images and logo.
- Various types of subtitles using five layers
It is possible to use five types of subtitles on one screen.
It can adjust size, color (character, edge), and position of characters during composition output.
Preview Monitor and Media Player
- Preview Monitor
It doesn’t require a special preview monitor because it provides a preview monitor including live input signals of CAM1 ~ 4, four media players, and two media players exclusive for PIP. (it will vary by model.)
- Media Player Controller and Audio Player
Four media players, two media players exclusive for PIP, and audio exclusive players have several functions such as Choose File, Play, Pause, and Search.
Composed Output Monitor and Output Control
- PGM Monitor
PGM Monitor can confirm a video that is composed in the end and output and doesn’t require a special monitor for output check.
- Video Output Control and Audio Monitoring
Clicking PGM Out Button is to control whether to output a video composed.
Clicking Video Preview Button is to control whether to display a video subjected to output. Clicking Audio Monitor Button is to monitor an audio subjected to output via a speaker connected to a system.
Video Switcher Controller and Transition
- Video Switcher
It allows cross composition of camcorder input signals, media player signals, and Chroma-key composite video signals. (it will vary by model)
It allows to specify whether to synchronize and output video and audio signals, and hence, it can output audios separated from the video signals.
- Transition and Live Multi-Cam Composition
It supports more than 30 types of transition (scene change) templates and is possible to appoint transition duration time.
It supports six types of PIP (Picture in Picture) composition exclusive scene change effects and has an inverse function that can switch main screen and sub-screen.
It can adjust color and thickness of edges and set transition time as an additional function of the PIP scene change effect.
It can simultaneously display multi pictures on a camcorder in each frame for production of conference, educational, and conversational programs.
Video Recorder | Streaming | PIP Setting | Router
- Video Recorder and Streaming
It can save the composed and output videos to video signals as well as image files such as MPEG2, MOV, WMV(ASF) and supports networks that can simultaneous transmit 50 clients with no a special media server. (it will vary by model)
- PIP Setting and Video Router
It can set up size, position, edge, and others for composition of PIP videos.
It can establish each of input settings depending on a video format of a camera connected.
It can set up formats of a video and audio subjected to composition output.
Product Specifications
MMVS-3Live
| Video Switcher | 8Channels (External x 4, Internal x 4) |
|---|---|
| Video Input | HD/SD-SDI x 4 or HDMI x 4 |
| Video Output | HD/SD-SDI x 1 or HDMI x 1 |
| Audio Input | HD/SD-SDI(Embedded Audio) x 4 or HDMI(Embedded Audio) x 4 Stereo(3.5mm, for Live) x 1 |
| Audio Output | HD/SD-SDI(Embedded Audio) x 1 or HDMI(Embedded Audio) x 1 Stereo(3.5mm, for Monitoring) x 1 |
| Media Player | Multimedia Player x 2 / NONE(Live SE) |
| PIP Media Player | Multimedia Player for PIP x 1 / NONE(Live SE) |
| Audio Player | Audio Player x 1 |
| Transition | Template sets x 30(Dissolve, Wipe, PIP), Live Multi-CAM |
| Character Generator | Template sets x 30 |
| Chroma-Key | MultiColor Selectable Chroma-Key |
| Video Recorder | NONE |
| Live Streaming | NONE |
| Operating System | Windows 7/Open GL Supported Graphic Adapter |
MMVS-3Studio
| Video Switcher | 8Channels (External x 4, Internal x 4) |
|---|---|
| Video Input | HD/SD-SDI x 4 or HDMI x 4 |
| Video Output | HD/SD-SDI x 1 or HDMI x 1 |
| Audio Input | HD/SD-SDI(Embedded Audio) x 4 or HDMI(Embedded Audio) x 4 Stereo(3.5mm, for Live) x 1 |
| Audio Output | HD/SD-SDI(Embedded Audio) x 1 or HDMI(Embedded Audio) x 1 Stereo(3.5mm, for Monitoring) x 1 |
| Media Player | Multimedia Player x 2 / NONE(Live SE) |
| PIP Media Player | Multimedia Player for PIP x 1 / NONE(Live SE) |
| Audio Player | Audio Player x 1 |
| Transition | Template sets x 30(Dissolve, Wipe, PIP), Live Multi-CAM |
| Character Generator | Template sets x 30 |
| Chroma-Key | MultiColor Selectable Chroma-Key |
| Video Recorder | NONE |
| Live Streaming | NONE |
| Operating System | Windows 7/Open GL Supported Graphic Adapter |
MMVS_4Live
| Video Switcher | 8Channels (External x 4, Internal x 4) |
|---|---|
| Video Input | HD/SD-SDI x 4 or HDMI x 4 |
| Video Output | HD/SD-SDI x 1 or HDMI x 1 |
| Audio Input | HD/SD-SDI(Embedded Audio) x 4 or HDMI(Embedded Audio) x 4 Stereo(3.5mm, for Live) x 1 |
| Audio Output | HD/SD-SDI(Embedded Audio) x 1 or HDMI(Embedded Audio) x 1 Stereo(3.5mm, for Monitoring) x 1 |
| Media Player | Multimedia Player x 2 / NONE(Live SE) |
| PIP Media Player | Multimedia Player for PIP x 1 / NONE(Live SE) |
| Audio Player | Audio Player x 1 |
| Transition | Template sets x 30(Dissolve, Wipe, PIP), Live Multi-CAM |
| Character Generator | Template sets x 30 |
| Chroma-Key | MultiColor Selectable Chroma-Key |
| Video Recorder | NONE |
| Live Streaming | NONE |
| Operating System | Windows 7/Open GL Supported Graphic Adapter |
MMVS-4Studio
| Video Switcher | 8Channels (External x 4, Internal x 4) |
|---|---|
| Video Input | HD/SD-SDI x 4 or HDMI x 4 |
| Video Output | HD/SD-SDI x 1 or HDMI x 1 |
| Audio Input | HD/SD-SDI(Embedded Audio) x 4 or HDMI(Embedded Audio) x 4 Stereo(3.5mm, for Live) x 1 |
| Audio Output | HD/SD-SDI(Embedded Audio) x 1 or HDMI(Embedded Audio) x 1 Stereo(3.5mm, for Monitoring) x 1 |
| Media Player | Multimedia Player x 2 |
| PIP Media Player | Multimedia Player for PIP x 1 |
| Audio Player | Audio Player x 1 |
| Transition | Template sets x 30(Dissolve, Wipe, PIP), Live Multi-CAM |
| Character Generator | Template sets x 30 |
| Chroma-Key | MultiColor Selectable Chroma-Key |
| Video Recorder | Realtime Recorder / MPEG2, MOV, WMV etc |
| Live Streaming | 50 Clients / WMV |
| Operating System | Windows 7/Open GL Supported Graphic Adapter |
MMVS-4StudioPro
| Video Switcher | 8Channels (External x 4, Internal x 4) |
|---|---|
| Video Input | HD/SD-SDI x 4 or HDMI x 4 |
| Video Output | HD/SD-SDI x 1 or HDMI x 1 |
| Audio Input | HD/SD-SDI(Embedded Audio) x 4 or HDMI(Embedded Audio) x 4 Stereo(3.5mm, for Live) x 1 |
| Audio Output | HD/SD-SDI(Embedded Audio) x 1 or HDMI(Embedded Audio) x 1 Stereo(3.5mm, for Monitoring) x 1 |
| Media Player | Multimedia Player x 4 |
| PIP Media Player | Multimedia Player for PIP x 2 |
| Audio Player | Audio Player x 1 |
| Transition | Template sets x 30(Dissolve, Wipe, PIP), Live Multi-CAM |
| Character Generator | Template sets x 30 |
| Chroma-Key | Light Direction, BG-Link, MultiColor Selectable Chroma-Key |
| Video Recorder | Realtime Recorder / MPEG2, MOV, WMV etc |
| Live Streaming | 50 Clients / WMV |
| Operating System | Windows 7/Open GL Supported Graphic Adapter |
